Visualization : Gaussian PSF - WIP!

Complete visualization workflow: sidecar creation, aggregation, and map display

Import the healpyxel package and core utilities:

# Import the GaussianPSF class from healpyxel.sidecar
from healpyxel.sidecar import GaussianPSF

import numpy as np
import matplotlib.pyplot as plt
# Create a Gaussian PSF with a chosen sigma
sigma = 1.0
psf = GaussianPSF(sigma=sigma)

# Create a grid of (dx, dy) values
grid_size = 100
extent = 3 * sigma
x = np.linspace(-extent, extent, grid_size)
y = np.linspace(-extent, extent, grid_size)
dx, dy = np.meshgrid(x, y)

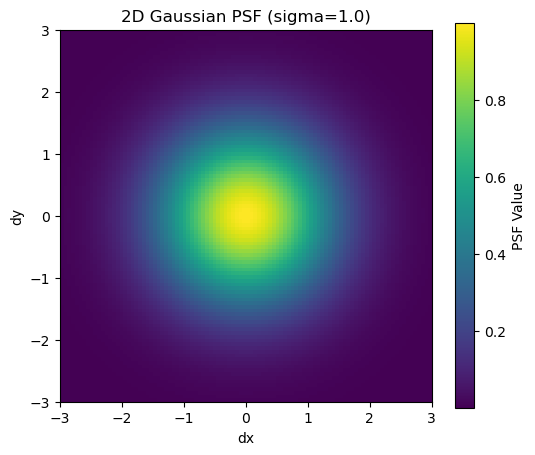

# Evaluate the PSF on the grid
z = psf(dx, dy)
plt.figure(figsize=(6, 5))
plt.imshow(z, extent=[-extent, extent, -extent, extent], origin='lower', cmap='viridis')
plt.colorbar(label='PSF Value')
plt.title(f'2D Gaussian PSF (sigma={sigma})')
plt.xlabel('dx')
plt.ylabel('dy')
plt.show()

plt.figure()
plt.plot(x, psf(x, 0), label='PSF along dy=0')
plt.title('Gaussian PSF 1D cross-section')
plt.xlabel('dx')
plt.ylabel('PSF Value')
plt.legend()
plt.show()

from pathlib import Path

# Look for test data
test_data_dir = Path('../test_data')
if test_data_dir.exists():
    print("Test data directory found!")
    print(f"\nContents:")
    for item in sorted(test_data_dir.iterdir()):
        if item.is_file():
            size_mb = item.stat().st_size / 1024 / 1024
            print(f"  {item.name}: {size_mb:.2f} MB")
        elif item.is_dir():
            n_files = len(list(item.glob('*')))
            print(f"  {item.name}/: {n_files} files")
else:
    print("Test data directory not found. Run create_test_data.sh to generate test data.")
Test data directory found!

Contents:
  README.md: 0.00 MB
  batches/: 10 files
  derived/: 1 files
  regions/: 0 files
  samples/: 3 files
  validation/: 2 files
from healpyxel.sidecar import process_partition, write_coalesced_output, get_psf
import pandas as pd
from pathlib import Path
import geopandas as gpd
from shapely import wkb

# Load your test data
input_path = test_data_dir / 'batches' / 'batch_001.parquet'
# Read as regular pandas DataFrame first (geometry is stored as WKB binary)
df = pd.read_parquet(input_path)

print(f"Loaded {len(df)} rows")
print(f"Columns: {list(df.columns)}")

# Convert WKB geometry column to shapely geometries
if 'geometry' in df.columns:
    print("\nConverting WKB geometry to GeoDataFrame...")
    df['geometry'] = df['geometry'].apply(lambda x: wkb.loads(bytes(x)) if x is not None else None)
    gdf = gpd.GeoDataFrame(df, geometry='geometry', crs='EPSG:4326')
    print(f"CRS: {gdf.crs}")
else:
    print("\nNo geometry column found!")
    gdf = df

# Show first few rows
gdf.head(3)
Loaded 3029 rows
Columns: ['ref_id', 'a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q1', 'q2', 'q3', 'q4', 'obs_id', 'vis_slope', 'nir_slope', 'visnir_slope', 'norm_vis_slope', 'norm_nir_slope', 'norm_visnir_slope', 'curvature', 'norm_curvature', 'uv_downturn', 'color_index_310_390', 'color_index_415_750', 'color_index_750_415', 'color_index_750_950', 'r310', 'r390', 'r750', 'r950', 'r1050', 'r1400', 'r415', 'r433_2', 'r479_9', 'r556_9', 'r628_8', 'r748_7', 'r828_4', 'r898_8', 'r996_2', 'spot_number', 'lat_center', 'lon_center', 'surface', 'width', 'length', 'ang_incidence', 'ang_emission', 'ang_phase', 'azimuth', 'geometry']

Converting WKB geometry to GeoDataFrame...
CRS: EPSG:4326
ref_id a b c d e f g h i ... lat_center lon_center surface width length ang_incidence ang_emission ang_phase azimuth geometry
0 0801419125400568 0 0 0 0 0 1 0 0 0 ... 1.069630 175.06512 54194396.0 5599.9224 12322.036 9.834717 73.333954 83.013830 154.51570 POLYGON ((175.18568 1.15206, 175.0281 1.12375,...
1 0801419125400569 0 0 0 0 0 1 0 0 0 ... 1.121209 175.14010 54753300.0 5660.6910 12315.469 9.769003 73.381120 82.985110 154.42958 POLYGON ((175.25902 1.20378, 175.10211 1.17589...
2 0801419125400570 0 0 0 0 0 1 0 0 0 ... 1.173109 175.21364 54823684.0 5736.7520 12167.806 9.704690 73.427300 82.956314 154.33447 POLYGON ((175.32878 1.25573, 175.1742 1.22806,...

3 rows × 61 columns

gdf['lon_center'].describe()
count    3029.000000
mean      175.486985
std         0.295076
min       175.000180
25%       175.228490
50%       175.482590
75%       175.747380
max       175.999080
Name: lon_center, dtype: float64
import numpy as np

def healpix_cell_diameter_deg(nside):
    # Area of a HEALPix cell (steradians)
    area_sr = 4 * np.pi / (12 * nside * nside)
    # Convert to square degrees
    area_deg2 = area_sr * (180/np.pi)**2
    # Equivalent diameter (degrees) for a circle of this area
    diameter_deg = 2 * np.sqrt(area_deg2 / np.pi)
    return diameter_deg
# Set parameters
nside = 32
mode = "fuzzy"
lon_convention = "0_360"
sigma_level = 0.01  # Number of sigma to cover the cell
cell_radius = healpix_cell_diameter_deg(nside) / 2
sigma = cell_radius / sigma_level
cell_psf = get_psf("gaussian", sigma=sigma)  # You can adjust sigma as needed
print(f"{cell_radius=}")
print(f"{sigma_level=}")
print(f"{sigma=:}")
cell_radius=np.float64(1.03374167891586)
sigma_level=0.01
sigma=103.374167891586

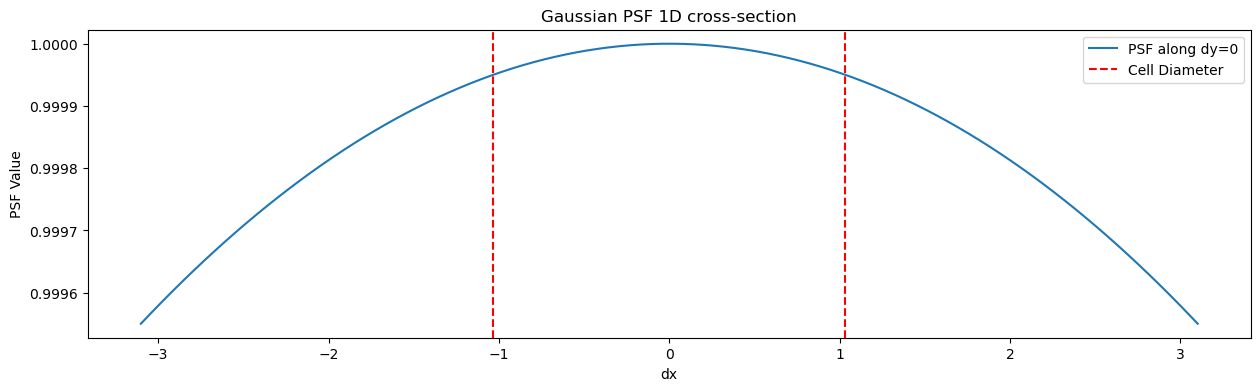

plt.figure()
x = np.linspace(-3* cell_radius, 3*cell_radius, 200)
plt.figure(figsize=(15,4))
plt.plot(x, cell_psf(x, 0), label='PSF along dy=0')
# put vertical lines at +/- cell_diameter
plt.axvline(cell_radius, color='r', linestyle='--', label='Cell Diameter ')
plt.axvline(-cell_radius, color='r', linestyle='--')
plt.title('Gaussian PSF 1D cross-section')
plt.xlabel('dx')
plt.ylabel('PSF Value')
plt.legend()
plt.show()
<Figure size 640x480 with 0 Axes>

processed_partition = process_partition(
    gdf,
    nside,
    mode,
    base_index=None,
    lon_convention=lon_convention,
    data_psf=None,
    cell_psf=cell_psf
    )

print(processed_partition.describe())
2026-02-03 13:20:07,357 INFO Partition (lon_convention=0_360): processed 3029 geometries, dropped 2 (0.1%) total [pre-filter: 2, post-processing: 0]
         source_id   healpix_id       weight
count  3539.000000       3539.0  3539.000000
mean   1484.089008  5784.662617     0.116974
std     877.023929  2786.253912     0.056835
min       0.000000       1360.0     0.052385
25%     723.500000       1887.0     0.068813
50%    1467.000000       6381.0     0.092915
75%    2249.500000       7114.0     0.171715
max    3028.000000       9588.0     0.231170

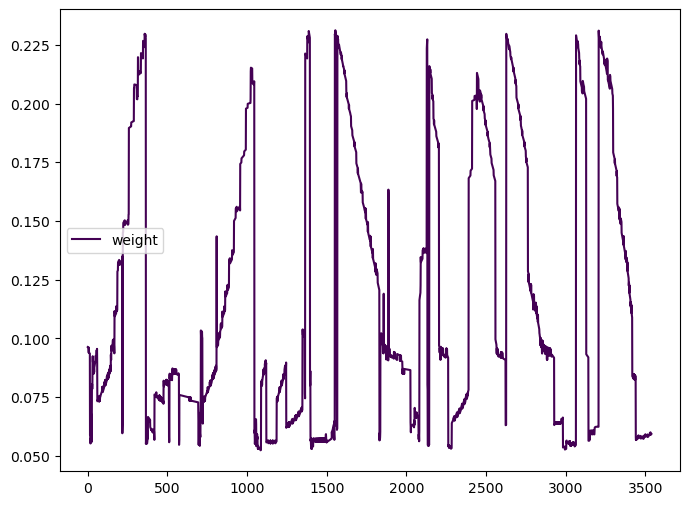

processed_partition['weight'].plot( cmap='viridis', figsize=(8,6), legend=True)

processed_partition.groupby('healpix_id').agg(len)[['weight']].sort_values(by='weight', ascending=False).head(10)
weight
healpix_id
6742 197
6300 84
9495 80
1494 73
6294 72
6381 71
6394 70
6748 66
1372 63
6374 61
processed_partition.groupby('healpix_id').agg(sum)[['weight']].sort_values(by='weight', ascending=False).head(10)
/tmp/ipykernel_3508251/3028256981.py:1: FutureWarning: The provided callable <built-in function sum> is currently using DataFrameGroupBy.sum. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "sum" instead.
  processed_partition.groupby('healpix_id').agg(sum)[['weight']].sort_values(by='weight', ascending=False).head(10)
weight
healpix_id
6742 18.155711
1494 14.655453
1404 11.186208
1372 10.915641
1887 10.366320
1879 10.354245
1398 9.979602
1909 9.568294
1500 9.174513
1492 8.849713
healpix_id = 6374
cell = processed_partition.query(f'healpix_id == {healpix_id}')

cell
source_id healpix_id weight
110 74 6374 0.080002
112 75 6374 0.080246
113 76 6374 0.080493
114 77 6374 0.080744
115 78 6374 0.081001
... ... ... ...
1395 1163 6374 0.082103
3434 2934 6374 0.082484
3436 2935 6374 0.082365
3438 2936 6374 0.082261
3439 2937 6374 0.082145

61 rows × 3 columns

import healpy as hp
lon, lat = 175, 43  # Example from your data
theta = np.radians(90 - lat)
phi = np.radians(lon)
hid = hp.ang2pix(nside, theta, phi, nest=True)
print(hid)

from healpyxel.sidecar import get_healpix_cell_geometry

# Return a shapely Polygon for the given HEALPix cell.
# Uses healpy boundaries (in degrees, lon/lat).

print(get_healpix_cell_geometry(hid, nside=nside,nest=False).exterior.xy)
1372
(array('d', [-32.94412311703627, -33.52804087419743, -34.82172104878954, -34.23461408949813, -32.94412311703627]), array('d', [100.70419447584689, 102.7155086769465, 102.67406996768031, 100.66793719134546, 100.70419447584689]))
gdf_cell = gdf.iloc[cell['source_id'].values].copy()
gdf_cell['weight'] = cell.set_index('source_id')['weight']
fig, ax = plt.subplots(figsize=(20,8))
gdf_cell.plot(aspect=0.2, ax=ax, column='weight', legend=True)

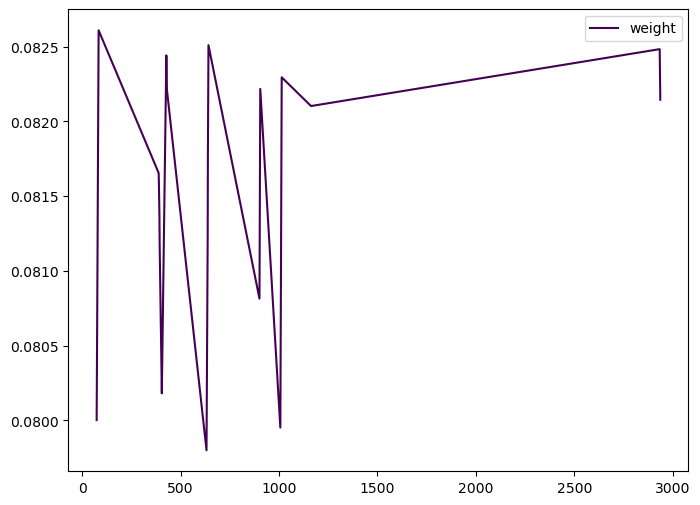

gdf_cell['weight'].plot( cmap='viridis', figsize=(8,6), legend=True)

from sqlalchemy import column

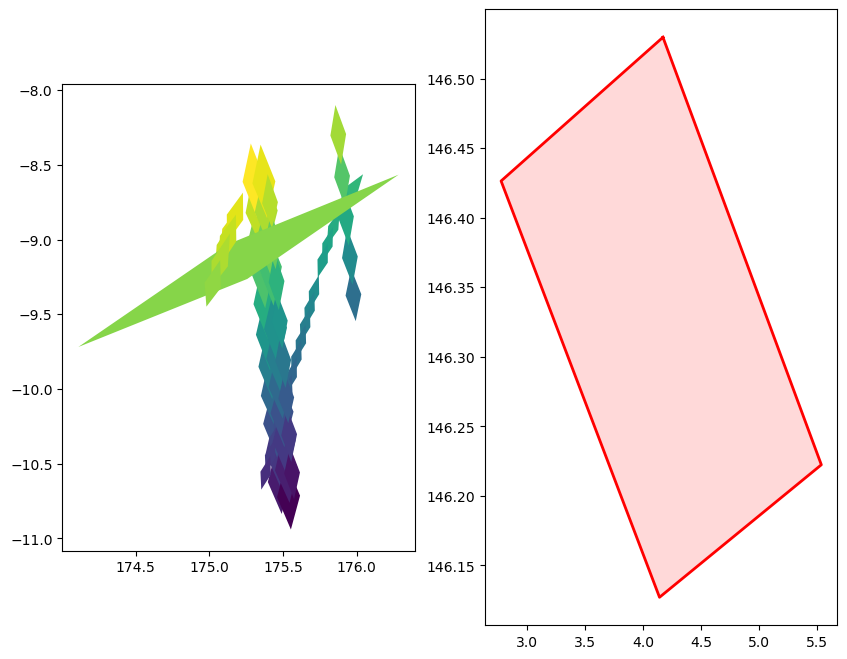

fig, axs = plt.subplots(ncols=2, figsize=(10,8))
gdf_cell.plot(ax=axs[0], aspect='auto', column='weight')
poly = get_healpix_cell_geometry(healpix_id, nside=nside)
x_poly, y_poly = poly.exterior.xy

axs[1].plot(x_poly, y_poly, color='red', linewidth=2)
axs[1].fill(x_poly, y_poly, facecolor='red', alpha=0.15)
