Accumulation - WIP!

Batch processing workflow: Sidecar → Aggregate → Visualize

import healpyxel
from healpyxel.sidecar import process_partition
from healpyxel.aggregate import aggregate_by_sidecar, densify_healpix_aggregates
import pandas as pd
import numpy as np
import geopandas as gpd
from pathlib import Path
from shapely import wkb

print(f"healpyxel version: {healpyxel.__version__}")

healpyxel version: 0.1.0

Test Data Discovery

Find available batch data files:

# Look for test data
test_data_dir = Path('../test_data')
batches_dir = test_data_dir / 'batches'

if batches_dir.exists():
    batch_files = sorted(batches_dir.glob('batch_*.parquet'))
    print(f"Found {len(batch_files)} batch files!")
    print(f"\nFirst few batches:")
    for f in batch_files[:5]:
        size_mb = f.stat().st_size / 1024 / 1024
        print(f"  {f.name}: {size_mb:.2f} MB")
    if len(batch_files) > 5:
        print(f"  ... and {len(batch_files) - 5} more")
else:
    print("Batch data not found. Run create_test_data.sh to generate test data.")
    batch_files = []

Found 10 batch files!

First few batches:
  batch_001.parquet: 1.12 MB
  batch_002.parquet: 1.51 MB
  batch_003.parquet: 1.37 MB
  batch_004.parquet: 1.46 MB
  batch_005.parquet: 1.66 MB
  ... and 5 more

Step 1: Create Sidecar for Each Batch

Process each batch file to create HEALPix assignments:

# Configuration
nside = 64  # HEALPix resolution
mode = 'fuzzy'  # Assignment mode
lon_convention = '0_360'  # Longitude range of input data

# Process first few batches as demonstration (adjust as needed)
n_batches_to_process = min(3, len(batch_files)) if batch_files else 0

sidecars = []
for i, batch_file in enumerate(batch_files[:n_batches_to_process]):
    print(f"\n[{i+1}/{n_batches_to_process}] Processing {batch_file.name}...")

    # Load batch data
    df = pd.read_parquet(batch_file)

    # Convert WKB geometry to GeoDataFrame
    if 'geometry' in df.columns:
        df['geometry'] = df['geometry'].apply(lambda x: wkb.loads(bytes(x)) if x is not None else None)
        gdf = gpd.GeoDataFrame(df, geometry='geometry', crs='EPSG:4326')
    else:
        print(f"  ⚠️  No geometry column found, skipping...")
        continue

    # Create sidecar
    sidecar = process_partition(
        gdf=gdf,
        nside=nside,
        mode=mode,
        base_index=0,
        lon_convention=lon_convention  # Use lon_convention instead of lat_min/lat_max
    )

    # Store with batch info
    sidecar['batch'] = i
    sidecars.append(sidecar)

    print(f"  ✓ Created {len(sidecar)} assignments from {len(gdf)} geometries")
    print(f"    Unique cells: {sidecar['healpix_id'].nunique()}")

#| eval: false
if sidecars:
    # Combine all sidecars
    combined_sidecar = pd.concat(sidecars, ignore_index=True)
    print(f"\n{'='*60}")
    print(f"Combined sidecar: {len(combined_sidecar)} total assignments")
    print(f"Unique cells touched: {combined_sidecar['healpix_id'].nunique()}")
    print(f"Unique sources: {combined_sidecar['source_id'].nunique()}")
else:
    print("\nNo sidecars created. Check that batch files exist and have geometry columns.")


[1/3] Processing batch_001.parquet...
  ✓ Created 3912 assignments from 3029 geometries
    Unique cells: 341

[2/3] Processing batch_002.parquet...
  ✓ Created 5382 assignments from 4127 geometries
    Unique cells: 338

[3/3] Processing batch_003.parquet...
  ✓ Created 4892 assignments from 3734 geometries
    Unique cells: 342

============================================================
Combined sidecar: 14186 total assignments
Unique cells touched: 641
Unique sources: 4127
  ✓ Created 4892 assignments from 3734 geometries
    Unique cells: 342

============================================================
Combined sidecar: 14186 total assignments
Unique cells touched: 641
Unique sources: 4127

2025-12-11 15:11:05,333 INFO Partition: processed 3029 geometries, dropped 2 (0.1%) due to invalid bounds
2025-12-11 15:11:06,269 INFO Partition: processed 4127 geometries, dropped 3 (0.1%) due to invalid bounds

Step 2: Aggregate Data by HEALPix Cells

Now aggregate the original data values by HEALPix cell using the sidecar:

# Reload and combine data from processed batches (drop geometry for aggregation)
combined_data_list = []

for i, batch_file in enumerate(batch_files[:n_batches_to_process]):
    df = pd.read_parquet(batch_file)

    # Drop geometry column if present (not needed for aggregation)
    if 'geometry' in df.columns:
        df = df.drop(columns=['geometry'])

    # Add source_id matching the sidecar creation
    df['source_id'] = df.index.astype(np.int64)
    df['batch'] = i
    combined_data_list.append(df)

if combined_data_list:
    combined_data = pd.concat(combined_data_list, ignore_index=True)
    print(f"Combined data: {len(combined_data)} rows")
    print(f"Columns: {list(combined_data.columns)}")
    print(f"\nFirst few rows:")
    display(combined_data.head())

Combined data: 10890 rows
Columns: ['ref_id', 'a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q1', 'q2', 'q3', 'q4', 'obs_id', 'vis_slope', 'nir_slope', 'visnir_slope', 'norm_vis_slope', 'norm_nir_slope', 'norm_visnir_slope', 'curvature', 'norm_curvature', 'uv_downturn', 'color_index_310_390', 'color_index_415_750', 'color_index_750_415', 'color_index_750_950', 'r310', 'r390', 'r750', 'r950', 'r1050', 'r1400', 'r415', 'r433_2', 'r479_9', 'r556_9', 'r628_8', 'r748_7', 'r828_4', 'r898_8', 'r996_2', 'spot_number', 'lat_center', 'lon_center', 'surface', 'width', 'length', 'ang_incidence', 'ang_emission', 'ang_phase', 'azimuth', 'source_id', 'batch']

First few rows:

	ref_id	f	...	lon_center	surface	width	length	ang_incidence	ang_emission	ang_phase	azimuth	source_id
0	0801419125400568	1	...	175.06512	54194396.0	5599.9224	12322.036	9.834717	73.333954	83.013830	154.51570	0
1	0801419125400569	1	...	175.14010	54753300.0	5660.6910	12315.469	9.769003	73.381120	82.985110	154.42958	1
2	0801419125400570	1	...	175.21364	54823684.0	5736.7520	12167.806	9.704690	73.427300	82.956314	154.33447	2
3	0801419125400571	1	...	175.28458	54962964.0	5861.2773	11939.551	9.641157	73.473150	82.927510	154.23120	3
4	0801419125400572	1	...	175.35536	55392168.0	5779.1610	12203.761	9.577167	73.520050	82.898830	154.12103	4

5 rows × 62 columns

# Choose a value column to aggregate (adjust based on your data)
# Common columns in MESSENGER MASCS data: r1050, r750, etc.
value_columns = ['r1050'] if 'r1050' in combined_data.columns else []

if not value_columns:
    # Try to find numeric columns
    numeric_cols = combined_data.select_dtypes(include=[np.number]).columns.tolist()
    # Exclude id and coordinate columns
    exclude = ['source_id', 'batch', 'lat_center', 'lon_center', 'lat', 'lon', 'latitude', 'longitude']
    value_columns = [c for c in numeric_cols if c not in exclude][:1]  # Take first suitable column

print(f"Aggregating column(s): {value_columns}")

if value_columns and sidecars:
    # Perform aggregation
    aggregated = aggregate_by_sidecar(
        original=combined_data,
        sidecar=combined_sidecar,
        value_columns=value_columns,
        aggs=['mean', 'median', 'std', 'mad', 'robust_std'],
        source_id_col='source_id',
        healpix_col='healpix_id',
        min_count=1,
       sentinel_threshold=1e30
    )

    print(f"\nAggregated {len(aggregated)} HEALPix cells")
    print(f"Columns: {list(aggregated.columns)}")
    display(aggregated.head(10))
else:
    print("Cannot aggregate: no suitable value columns or no sidecars created")

2025-12-11 15:11:07,204 INFO Starting aggregation for 1 column(s): ['r1050']
2025-12-11 15:11:07,205 INFO Aggregation functions: ['mean', 'median', 'std', 'mad', 'robust_std']
2025-12-11 15:11:07,205 INFO Aggregation functions: ['mean', 'median', 'std', 'mad', 'robust_std']
2025-12-11 15:11:07,218 WARNING Found 6763 duplicate source_id values - keeping first occurrence
2025-12-11 15:11:07,218 WARNING Found 6763 duplicate source_id values - keeping first occurrence
2025-12-11 15:11:07,228 INFO Sidecar source_id overlap: 4127/4127 (100.0%)
2025-12-11 15:11:07,229 INFO Merging sidecar with original data
2025-12-11 15:11:07,229 INFO Merging sidecar with original data
2025-12-11 15:11:07,233 INFO Grouping by healpix_id and computing aggregations
2025-12-11 15:11:07,241 INFO Processing 641 HEALPix cells
2025-12-11 15:11:07,233 INFO Grouping by healpix_id and computing aggregations
2025-12-11 15:11:07,241 INFO Processing 641 HEALPix cells
2025-12-11 15:11:07,456 INFO Creating output DataFrame with 641 cells
2025-12-11 15:11:07,459 INFO Aggregation complete. Output shape: (641, 6)
2025-12-11 15:11:07,459 INFO Aggregation complete. Output shape: (641, 6)

Aggregating column(s): ['r1050']

Aggregated 641 HEALPix cells
Columns: ['r1050_mean', 'r1050_median', 'r1050_std', 'r1050_mad', 'r1050_robust_std', 'n_sources']

	r1050_mean	r1050_median	r1050_std	r1050_mad	r1050_robust_std	n_sources
healpix_id
5441	0.065725	0.066955	0.001959	0.000304	0.000451	3
5443	0.062025	0.062025	0.000000	0.000000	0.000000	1
5444	0.052158	0.050539	0.005063	0.002227	0.003301	10
5445	0.055384	0.053641	0.008371	0.005352	0.007935	49
5447	0.062666	0.066012	0.007553	0.003986	0.005910	11
5456	0.055859	0.052784	0.008179	0.004984	0.007389	37
5457	0.054064	0.051851	0.006374	0.004704	0.006975	12
5458	0.055457	0.052863	0.012101	0.011351	0.016828	36
5459	0.048873	0.049093	0.009073	0.006335	0.009392	40
5462	0.049698	0.049482	0.004805	0.002275	0.003373	16

Step 3: Densify for Complete HEALPix Grid

Fill in empty cells to create a complete HEALPix map:

if value_columns and sidecars:
    # Densify the sparse aggregated data
    aggregated_dense = densify_healpix_aggregates(
        agg_sparse_df=aggregated,
        nside=nside,
        healpix_col='healpix_id'
    )

    total_cells = 12 * nside ** 2
    filled_cells = aggregated[f'{value_columns[0]}_mean'].notna().sum()
    empty_cells = total_cells - filled_cells

    print(f"HEALPix Grid (nside={nside}):")
    print(f"  Total cells: {total_cells}")
    print(f"  Cells with data: {filled_cells}")
    print(f"  Empty cells: {empty_cells}")
    print(f"  Coverage: {100 * filled_cells / total_cells:.2f}%")

    display(aggregated_dense.head(10))

2025-12-11 15:11:07,511 INFO Densified to 49152 cells (added 48511 empty cells)

HEALPix Grid (nside=64):
  Total cells: 49152
  Cells with data: 641
  Empty cells: 48511
  Coverage: 1.30%

	r1050_mean	r1050_median	r1050_std	r1050_mad	r1050_robust_std	n_sources
healpix_id
0	NaN	NaN	NaN	NaN	NaN	<NA>
1	NaN	NaN	NaN	NaN	NaN	<NA>
2	NaN	NaN	NaN	NaN	NaN	<NA>
3	NaN	NaN	NaN	NaN	NaN	<NA>
4	NaN	NaN	NaN	NaN	NaN	<NA>
5	NaN	NaN	NaN	NaN	NaN	<NA>
6	NaN	NaN	NaN	NaN	NaN	<NA>
7	NaN	NaN	NaN	NaN	NaN	<NA>
8	NaN	NaN	NaN	NaN	NaN	<NA>
9	NaN	NaN	NaN	NaN	NaN	<NA>

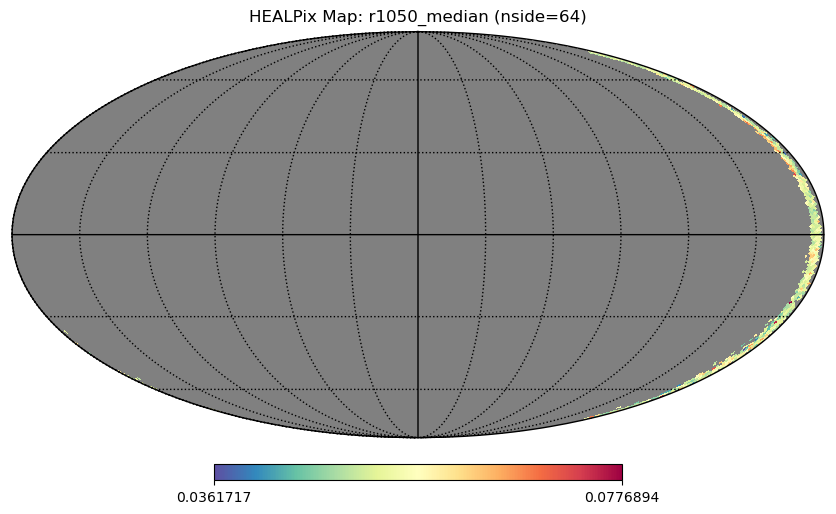

Step 4: Visualize HEALPix Map

Create a visualization of the aggregated data:

if value_columns and sidecars:
    import healpy as hp
    import matplotlib.pyplot as plt

    # Choose which statistic to visualize
    stat_column = f'{value_columns[0]}_median'

    # Extract map values (NaN for empty cells)
    healpix_map = aggregated_dense[stat_column].values.astype(float)

    # Create visualization
    plt.figure(figsize=(12, 8))
    hp.mollview(
        healpix_map,
        nest=True,
        title=f'HEALPix Map: {stat_column} (nside={nside})',
        cmap='Spectral_r',
        flip='geo',
        xsize=2000
    )
    hp.graticule()
    plt.show()

    # Statistics of the mapped data
    valid_data = healpix_map[~np.isnan(healpix_map)]
    print(f"\nMap Statistics:")
    print(f"  Min: {valid_data.min():.4f}")
    print(f"  Max: {valid_data.max():.4f}")
    print(f"  Mean: {valid_data.mean():.4f}")
    print(f"  Median: {np.median(valid_data):.4f}")

2025-12-11 15:11:07,965 INFO 0.0 180.0 -180.0 180.0
2025-12-11 15:11:07,966 INFO The interval between parallels is 30 deg -0.00'.
2025-12-11 15:11:07,967 INFO The interval between meridians is 30 deg -0.00'.
2025-12-11 15:11:07,966 INFO The interval between parallels is 30 deg -0.00'.
2025-12-11 15:11:07,967 INFO The interval between meridians is 30 deg -0.00'.

<Figure size 1200x800 with 0 Axes>


Map Statistics:
  Min: 0.0362
  Max: 0.0777
  Mean: 0.0535
  Median: 0.0527

Summary

This notebook demonstrated the complete healpyxel workflow:

Sidecar Creation: Assigned HEALPix cells to geometries using process_partition()
Aggregation: Computed statistics per cell using aggregate_by_sidecar()
Densification: Created complete grid using densify_healpix_aggregates()
Visualization: Displayed the final HEALPix map

For Large Datasets

For processing many batch files efficiently, use the CLI tools:

# Process all batches with sidecar creation
for batch in test_data/batches/batch_*.parquet; do
    healpix_sidecar --input "$batch" \
                    --nside 32 64 \
                    --mode fuzzy \
                    --lon-convention 0_360 \
                    --ncores 4
done

# Aggregate all data
healpix_aggregate --input test_data/batches/ \
                  --pattern "*.parquet" \
                  --nside 32 \
                  --output aggregated_nside32.parquet

# Finalize maps
healpix_finalize --input aggregated_nside32.parquet \
                 --nside 32 \
                 --output final_maps/

Next Steps

Experiment with different nside values for different resolutions
Try both ‘strict’ and ‘fuzzy’ assignment modes
Aggregate multiple value columns simultaneously
Use finalize_maps() to create production-ready map products
