HEALPix-based spatial aggregation for planetary science data

Features

• Batch Processing: Classical split-apply-combine for static datasets
• Streaming Aggregation: Incremental statistics for growing datasets
• Memory Efficient: Process datasets larger than RAM
• Native Resolution Mosaics: Fine-grained HEALPix grids
• Flexible Statistics: Mean, median, std, MAD, robust_std, percentiles

Installation

pip install healpyxel

Optional Dependencies

# For geospatial operations (sidecar generation)
pip install healpyxel[geospatial]

# For streaming/incremental statistics (accumulator)
pip install healpyxel[streaming]

# For visualization (maps, plots)
pip install healpyxel[viz]

# Development tools (nbdev, testing, linting)
pip install healpyxel[dev]

# All optional dependencies
pip install healpyxel[all]

Extras breakdown: - geospatial: geopandas, shapely, dask-geopandas, antimeridian (required for healpyxel_sidecar) - streaming: tdigest (percentile tracking in healpyxel_accumulator) - viz: matplotlib, scikit-image, skyproj (mapping workflows) - dev: All of the above + nbdev, pytest, black, ruff, mypy - all: Installs geospatial + streaming + viz (excludes dev tools)

Quick Start

The healpyxel workflow implements spatial aggregation using three core steps:

1. Split: Map observations to HEALPix cells

You start with observation data (GeoParquet): geometries + values per record. A sidecar file links each observation (source_id) to HEALPix cells at your target resolution (nside).

Data contract: - Input: observations.parquet → columns: source_id, value, geometry - Output: observations-sidecar.parquet → columns: source_id, healpix_id, weight (fuzzy mode only)

CLI: healpyxel_sidecar --input observations.parquet --nside 64 128 --mode fuzzy

✓ Saved: Sidecar.svg (74732 bytes)

Sidecar.svg

True

2. Apply: Aggregate values per HEALPix cell

Group all observations assigned to the same cell and compute statistics (median, mean, MAD, robust_std, etc.).

Data contract: - Input: observations.parquet + sidecar file - Output: observations-aggregated.parquet → columns: healpix_id, value_median, value_robust_std, …

CLI: healpyxel_aggregate --input observations.parquet --sidecar-dir output/ --columns value --aggs median robust_std

✓ Saved: Aggregate.svg (75340 bytes)

Aggregate.svg

True

3. Combine: Attach HEALPix cell geometry

Add polygon boundaries to aggregated cells (computed from healpix_id via healpy).

Data contract: - Input: observations-aggregated.parquet - Output: observations-aggregated.geo.parquet → adds column: geometry (HEALPix cell polygon)

CLI: healpyxel_to_geoparquet --aggregate-path observations-aggregated.parquet --output-dir output/

✓ Saved: Geometry.svg (69438 bytes)

Geometry.svg

True

Optional: Cache geometries

Pre-compute HEALPix cell boundaries for faster repeated use (especially for high nside).

CLI: healpyxel_cache --nside 64 128 --order nested --lon-convention 0_360

Batch Processing

see below

# 1. Generate HEALPix sidecar (SPLIT)
healpyxel_sidecar \
  --input observations.parquet \
  --nside 64 128 \
  --mode fuzzy \
  --output-dir output/

# 2. Aggregate by HEALPix cells (APPLY)
healpyxel_aggregate \
  --input observations.parquet \
  --sidecar-dir output/ \
  --sidecar-index 0 \
  --aggregate \
  --columns r750 r950 \
  --aggs median robust_std \
  --min-count 3

# 3. Convert to GeoParquet (for visualization)
healpyxel_to_geoparquet \
  --aggregate-path output/observations-aggregated.*.parquet \
  --output-dir output/ \
  --lon-convention -180_180

# 4. Cache HEALPix geometry (optional, speeds up visualization)
healpyxel_cache --nside 64 128 --order nested --lon-convention 0_360

Streaming Processing - WORK IN PROGRESS

# Day 1: Initialize accumulator
healpyxel_accumulate --input day001.parquet \
  --columns r750 r950 --state-output state_v001.parquet

# Day 2+: Incremental updates
healpyxel_accumulate --input day002.parquet \
  --columns r750 r950 \
  --state-input state_v001.parquet --state-output state_v002.parquet

# Finalize to statistics
healpyxel_finalize --state state_v030.parquet --output mosaic.parquet \
  --percentiles 25 50 75 --densify --nside 512

CLI Workflow

This section explan a full CLI workflow on a test sample 50k data, including the outputs produced at each stage.

The same workflow is done completely in python with healpyxel API in Examples>Visualization section.

All input/output are in this repsitory:

• script is at examples/cli_regrid_sample_50k.sh
• input are at test_data/samples/sample_50k.parquet
• ouput are in test_data/derived/cli_quickstart

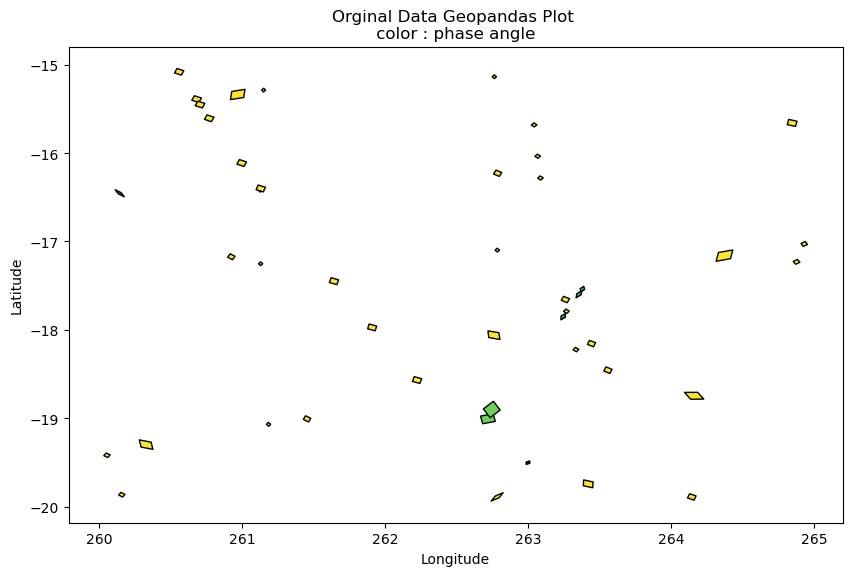

Original files excerpt (transposed for clarity):
Sidecar Metadata:
Unique sources: 49988
  Unique HEALPix cells: 10860
  Total assignments: 54931

  Sidecar Data:

	lat_center	lon_center	surface	width	length	ang_incidence	ang_emission	ang_phase	azimuth	geometry
0	5.186568	272.40450	1567133.4	1006.63727	1982.1799	43.049232	34.814793	77.85916	109.019295	POLYGON ((272.39758 5.16433, 272.41583 5.18307...
1	-60.939438	71.77686	13564574.0	4064.49850	4249.2210	64.178116	37.690910	101.84035	111.930336	POLYGON ((71.72596 -60.89612, 71.69186 -60.963...
2	5.613894	54.23045	1755143.5	1013.51886	2204.9104	53.815990	24.053764	77.86254	99.559425	POLYGON ((54.24406 5.63592, 54.22025 5.62014, ...
3	-41.672714	324.49740	23309360.0	6511.20950	4558.0470	52.841824	46.625698	99.40995	121.833626	POLYGON ((324.54932 -41.70964, 324.56927 -41.6...

	source_id	healpix_id	weight
0	0	7943	1.0
1	1	8287	1.0
2	2	5819	1.0
3	3	11685	1.0
4	4	3618	1.0
5	5	3805	1.0
6	6	9522	1.0
7	7	10975	1.0
8	8	1820	1.0
9	9	3710	1.0

1) Create HEALPix sidecar(s)

Those files link each row in the input parquet file to the HEALPix cells at the requested nside resolution; see Useful Healpix data for Moon Venus Mercury for some cells data. Refer to healpyxel_sidecar --help for full options. The --mode flag is especially important: - fuzzy: assign each input record to every cell it touches - strict: assign only records fully contained within a cell

healpyxel_sidecar \
  --input "test_data/samples/sample_50k.parquet" \
  --nside 32 64 \
  --mode fuzzy \
  --lon-convention 0_360 \
  --output_dir "test_data/derived/cli_quickstart"

Outputs

• sample_50k.cell-healpix_assignment-fuzzy_nside-32_order-nested.parquet
• sample_50k.cell-healpix_assignment-fuzzy_nside-32_order-nested.meta.json
• sample_50k.cell-healpix_assignment-fuzzy_nside-64_order-nested.parquet
• sample_50k.cell-healpix_assignment-fuzzy_nside-64_order-nested.meta.json

Nside 32: 54931 assignments, 10860 unique cells

	source_id	healpix_id	weight
0	0	7943	1.0
1	1	8287	1.0
2	2	5819	1.0
3	3	11685	1.0
4	4	3618	1.0

# original_df['geometry'] = original_df.geometry.apply(
#     lambda geom: geom.buffer(0) if geom and not geom.is_valid else geom
# )

2) Aggregate sparse regridded map(s)

Now we need to aggregate initial data on the cells, refer to healpyxel_aggregate --help for all the option. Some flag are particurarly useful:

• --schema : show input parquet schema, useful to look which data are there to aggregate.
• --list-sidecars : list available sidecar for an input files, they are addressed by index.
• --sidecar-schema INDEX : show schema for specific sidecar file
• --aggs mean : aggregation functions (choices: mean, median, std, min, max, mad, robust_std).

Example :

• input file contains columns A (you can check it with healpyxel_aggregate -i input --schema)
• --agg mean median std
• this produce un output the columns A_mean, A_median and A_std created appling those function on all input files rows listd in the sidecar file for a single HEALPix cell

healpyxel_aggregate \
  --input "test_data/samples/sample_50k.parquet" \
  --sidecar-dir "test_data/derived/cli_quickstart" \
  --sidecar-index all \
  --aggregate \
  --columns r1050 \
  --aggs mean median std mad robust_std \

This produces sparse output : only cells with actual values are written in ouput.

Outputs - sample_50k-aggregated.cell-healpix_assignment-fuzzy_nside-32_order-nested.parquet - sample_50k-aggregated.cell-healpix_assignment-fuzzy_nside-32_order-nested.meta.json - sample_50k-aggregated.cell-healpix_assignment-fuzzy_nside-64_order-nested.parquet - sample_50k-aggregated.cell-healpix_assignment-fuzzy_nside-64_order-nested.meta.json

Nside 32: 10860 unique cells

	r1050_mean	r1050_median	r1050_std	r1050_mad	r1050_robust_std	n_sources
healpix_id
0	0.048616	0.047857	0.003759	0.002672	0.003962	4
1	0.051467	0.052283	0.002976	0.001888	0.002799	6
2	0.049697	0.049118	0.003637	0.002289	0.003394	6
3	0.059066	0.063241	0.007149	0.001711	0.002537	3
4	0.051262	0.051523	0.006552	0.002510	0.003721	9

3) Aggregate densified regridded map(s)

healpyxel_aggregate \
  --input "test_data/samples/sample_50k.parquet" \
  --sidecar-dir "test_data/derived/cli_quickstart" \
  --sidecar-index all \
  --aggregate \
  --columns r1050 \
  --aggs mean median std mad robust_std \
  --densify

This produces dense output : all HEALPix cells are writeen in ouput, empty one as filled with Nan.

Outputs - sample_50k-aggregated-densified.cell-healpix_assignment-fuzzy_nside-32_order-nested.parquet - sample_50k-aggregated-densified.cell-healpix_assignment-fuzzy_nside-32_order-nested.meta.json - sample_50k-aggregated-densified.cell-healpix_assignment-fuzzy_nside-64_order-nested.parquet - sample_50k-aggregated-densified.cell-healpix_assignment-fuzzy_nside-64_order-nested.meta.json

Nside 32: 12288 unique cells <- densified , 1428 additional empty cells filled in by densification

	r1050_mean	r1050_median	r1050_std	r1050_mad	r1050_robust_std	n_sources
healpix_id
29	0.046644	0.046644	0.000000	0.000000	0.000000	1.0
30	NaN	NaN	NaN	NaN	NaN	NaN
31	0.040205	0.040986	0.009636	0.007137	0.010581	4.0
32	0.054966	0.054413	0.003162	0.002148	0.003184	8.0
33	0.054424	0.055591	0.004131	0.003358	0.004979	8.0
34	0.057463	0.057463	0.001704	0.001704	0.002526	2.0
35	0.050470	0.057635	0.017546	0.004688	0.006951	4.0
36	0.054052	0.053640	0.004915	0.002833	0.004200	6.0
37	0.056132	0.056019	0.002281	0.002128	0.003155	4.0
38	0.060452	0.060592	0.002127	0.001878	0.002784	4.0
39	0.060708	0.070030	0.014303	0.001562	0.002316	3.0
40	0.041480	0.041480	0.000000	0.000000	0.000000	1.0
41	0.028736	0.028736	0.000000	0.000000	0.000000	1.0
42	0.070738	0.070655	0.009835	0.011921	0.017674	3.0
43	0.062058	0.061658	0.009862	0.008409	0.012467	8.0
44	NaN	NaN	NaN	NaN	NaN	NaN
45	0.053895	0.054106	0.001107	0.001026	0.001521	3.0

4) Convert aggregated maps to GeoParquet

This convert each aggregated file to a geoparquet.

for f in "test_data/derived/cli_quickstart"/*-aggregated*parquet; do
  healpyxel_to_geoparquet -a "$f" -d "test_data/derived/cli_quickstart" -l -180_180 -f
done

Outputs - sample_50k-aggregated-densified.cell-healpix_assignment-fuzzy_nside-32_order-nested.geo.parquet - sample_50k-aggregated-densified.cell-healpix_assignment-fuzzy_nside-64_order-nested.geo.parquet - sample_50k-aggregated.cell-healpix_assignment-fuzzy_nside-32_order-nested.geo.parquet - sample_50k-aggregated.cell-healpix_assignment-fuzzy_nside-64_order-nested.geo.parquet

Nside 32: 10860 unique cells

	geometry	r1050_mean	r1050_median	r1050_std	r1050_mad	r1050_robust_std	n_sources
healpix_id
0	POLYGON ((45 2.38802, 43.59375 1.19375, 45 0, ...	0.048616	0.047857	0.003759	0.002672	0.003962	4
1	POLYGON ((46.40625 3.58332, 45 2.38802, 46.406...	0.051467	0.052283	0.002976	0.001888	0.002799	6
2	POLYGON ((43.59375 3.58332, 42.1875 2.38802, 4...	0.049697	0.049118	0.003637	0.002289	0.003394	6
3	POLYGON ((45 4.78019, 43.59375 3.58332, 45 2.3...	0.059066	0.063241	0.007149	0.001711	0.002537	3
4	POLYGON ((47.8125 4.78019, 46.40625 3.58332, 4...	0.051262	0.051523	0.006552	0.002510	0.003721	9

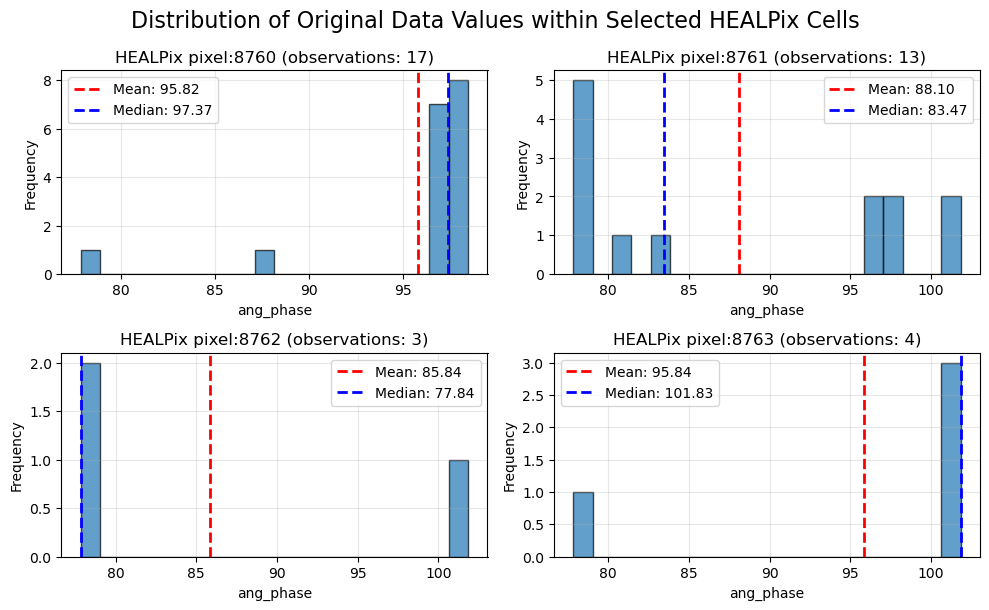

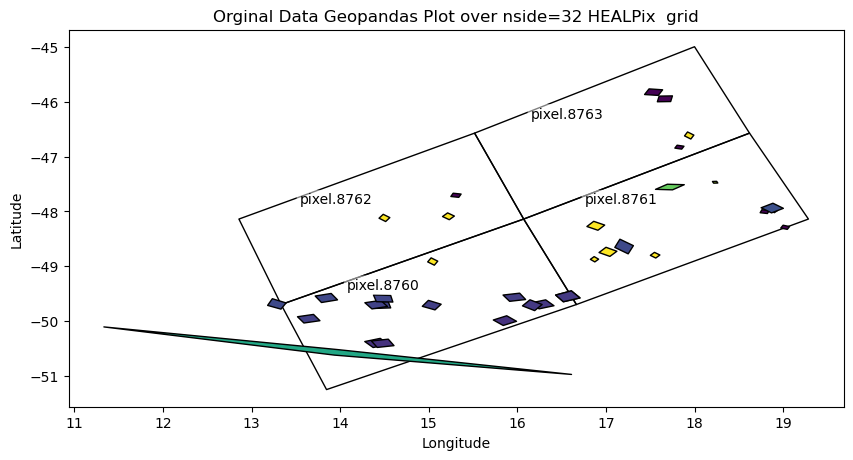

Each cell is linked to some initial observation via the sidecar file, we can see here the distribution of one value in all the cell

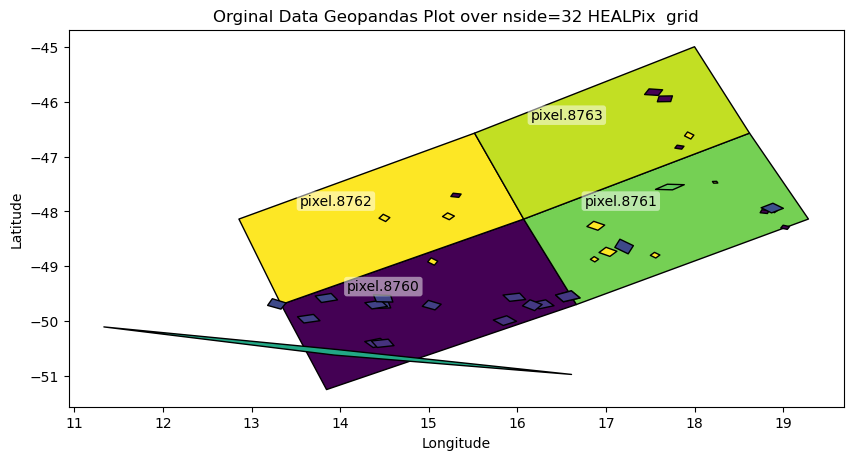

We can visualize each pixel with one of the aggregator function output available in healpyxel_aggregate :

• mean: Arithmetic mean
• median: Median (50th percentile)
• std: Standard deviation
• min: Minimum value
• max: Maximum value
• mad: Median Absolute Deviation (robust to outliers)
• robust_std: MAD × 1.4826 (equivalent to standard deviation for normal distributions, robust to outliers)

Each function generates one output column per input value column, named <column>_<agg> (e.g., r1050_mean, r1050_median, r1050_mad). Robust statistics (mad, robust_std) are recommended for outlier-prone datasets.

Python API

Minimal end-to-end python API example, each level works on previous one output.

• initial data →
• sidecar : generate data <> healpix grid connections →
• aggregate →
• attach geometry →
• accumulate →
• finalize

minimal code, a more detailed explanation is in Examples>Visualization section.

---

from healpyxel import sidecar, aggregate, accumulator, finalize
from healpyxel.geospatial import healpix_to_geodataframe

# Minimal API sanity checks (nbdev-friendly)
assert hasattr(sidecar, "generate")
assert hasattr(aggregate, "by_sidecar")
assert hasattr(accumulator, "update_state")
assert hasattr(finalize, "from_state")
assert callable(healpix_to_geodataframe)

# 1) Sidecar (split)
sidecar_df = sidecar.generate(
    gdf,
    nside=64,
    mode="fuzzy",
    order="nested",
    lon_convention="0_360",
)

# 2) Aggregate (apply)
agg_df = aggregate.by_sidecar(
    original=df,
    sidecar=sidecar_df,
    value_columns=["r750", "r950"],
    aggs=["median", "robust_std"],
    min_count=3,
)

# 2b) Attach geometry to step-2 products (geospatial)
cells_gdf = healpix_to_geodataframe(
    nside=64,
    order="nested",
    lon_convention="0_360",
    pixels=agg_df["healpix_id"].to_numpy(),
    fix_antimeridian=True,
    cache_mode="use",
).reset_index(drop=False)

agg_geo_gdf = cells_gdf.merge(agg_df, on="healpix_id", how="left")

# 3) Accumulator (streaming apply)
state_df = accumulator.update_state(
    batch=df,
    sidecar=sidecar_df,
    value_columns=["r750", "r950"],
    state=None,
)

# 4) Finalize (combine)
final_df = finalize.from_state(
    state=state_df,
    aggs=["mean", "std", "median", "robust_std"],
)

Developed for MESSENGER/MASCS

This package was developed to process spectral observations from the MESSENGER/MASCS instrument studying Mercury’s surface. The workflow handles:

• Millions of observations with complex footprint geometries
• Multi-spectral reflectance data (VIS + NIR)
• Streaming data from ongoing missions
• Native resolution mosaics (sub-footprint sampling)

While designed for MASCS, healpyxel is general-purpose and works with any planetary science dataset in GeoParquet format.

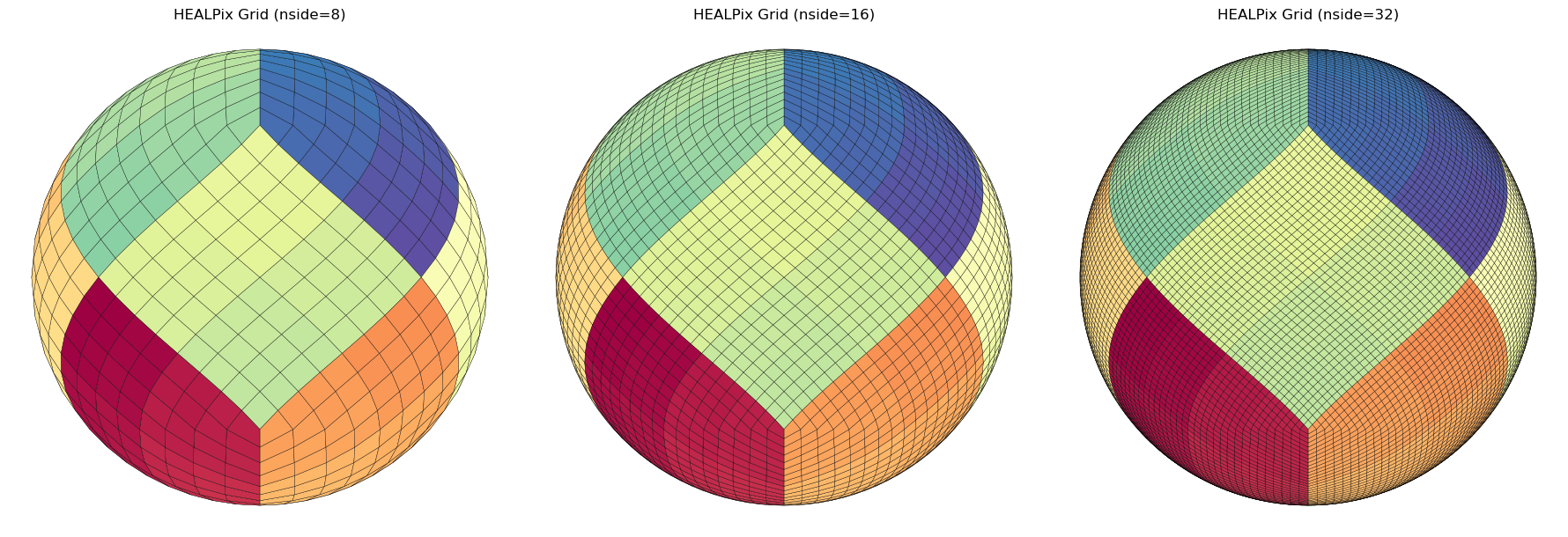

Useful Healpix data for Moon Venus Mercury

	Number of Cells	Cell Angular Size (deg)	Mercury Cell Size (km)	Moon Cell Size (km)	Venus Cell Size (km)
nside
1	12	58.632	2496.610	1777.928	6192.969
2	48	29.316	1248.305	888.964	3096.484
4	192	14.658	624.153	444.482	1548.242
8	768	7.329	312.076	222.241	774.121
16	3,072	3.665	156.038	111.120	387.061
32	12,288	1.832	78.019	55.560	193.530
64	49,152	0.916	39.010	27.780	96.765
128	196,608	0.458	19.505	13.890	48.383
256	786,432	0.229	9.752	6.945	24.191
512	3,145,728	0.115	4.876	3.473	12.096
1,024	12,582,912	0.057	2.438	1.736	6.048
2,048	50,331,648	0.029	1.219	0.868	3.024
4,096	201,326,592	0.014	0.610	0.434	1.512
8,192	805,306,368	0.007	0.305	0.217	0.756

License

Apache 2.0
